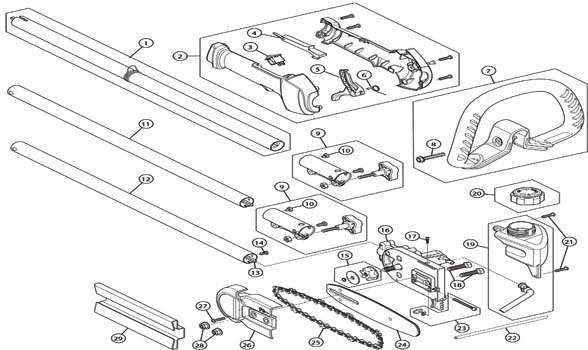

RM2599 GAS POLESAW ASSEMBLY
Click on the Part Number for Picture, Price, and Where to buy.
- 1 753-04344 Upper Drive Shaft Housing Assembly
- 2 753-04234 Throttle Housing Assembly (includes 3 - 6)
- 3 791-182405 Throttle Switch Assembly
- 4 753-05171 Throttle Trigger Lock-Out
- 5 753-05517 Throttle Trigger
- 6 753-05007 Throttle Trigger Spring
- 7 753-06039 D-Handle (includes 9)
- 8 753-06040 D-Handle Bolt
- 9 753-06944 Split Boom Coupler Assembly (includes 10)
- 10 791-182057 Split Boom Coupler Screw
- 11 753-04352 Extension Boom
- 12 753-05724 Lower Drive Shaft Housing (includes 13)
- 13 791-181852 Flexible Drive Shaft
- 14 791-180288 Lower Drive Shaft Screw
- 15 753-05595 Sprocket Assembly
- 16 753-05599 Gearbox Assembly (includes 15 & 17)
- 17 753-05589 Gearbox Screw
- 18 753-05596 Gearbox Bolts
- 19 753-05586 Oil Tank Assembly
- 20 753-05587 Fuel Cap Assembly
- 21 791-181345 Screw
- 22 753-05588 Oil Line
- 23 753-05597 Chain Tension Hardware Assembly
- 24 753-05594 Chainsaw Guide Bar
- 25 753-05592 Chain
- 26 753-05765 Chain Guard
- 27 791-181345 Screw
- 28 753-05591 Gearbox Nuts
- 29 753-05598 Chain Cover
