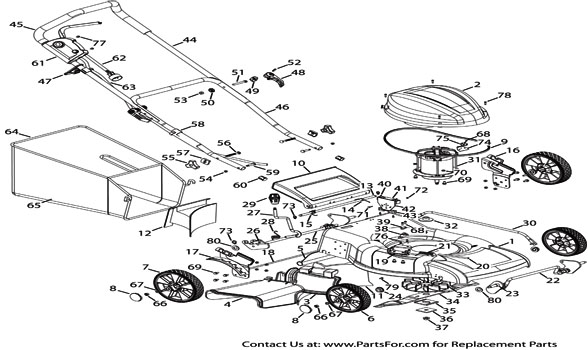

RM212A ELECTRIC MOWER
Click on the Part Number for Picture, Price, and Where to buy.
- 1 787-01823 Deck
- 2 731-07618 Shroud
- 3 731-07619 Mulch Door
- 4 731-07620 Discharge Chute
- 5 731-07621 Trail Shield
- 6 734-04553 Front Wheel
- 7 734-04554 Rear Wheel
- 8 731-07512 Wheel Cap
- 9 721-04378 Shroud Seal
- 10 731-07622 Rear Door
- 11 731-07623 Rear Baffle
- 12 731-07624 Mulch Plug
- 13 711-05358 Pin
- 14 732-04733 Spring
- 15 732-04734 Spring
- 16 787-01824 Left Bracket
- 17 787-01825 Right Bracket
- 18 711-05325 Trail shield Rod
- 19 787-01813 Mulch Door Bracket
- 20 711-05326 Mulch Door Rod
- 21 732-04713 Mulch Door Spring
- 22 611-04181 Front Shaft Assembly
- 23 741-04464 Spacer Bushing
- 24 731-07706 Wheel Bushing
- 25 611-04182 Rear Shaft Assembly
- 26 741-04465 Spacer Bushing
- 27 732-04735 Height Adjust Handle
- 28 732-04715 Height Adjust Spring
- 29 720-04143 Height Adjust Knob
- 30 787-01826 Height Adjust Rod
- 31 724-04088 Motor
- 32 736-04486 Flange
- 33 731-07515 Electric Motor Fan
- 34 742-04317 Blade
- 35 731-07598 Washer
- 36 736-04487 Washer
- 37 712-04237 Nut
- 38 731-07516 Strain Relief Bracket
- 39 731-07520 Strain Relief Cap
- 40 725-05071 Resistor
- 41 725-05119 Resistor Holder
- 42 731-07599 Resistor Bracket
- 43 725-05118 Resistor Base
- 44 749-04670 Upper Handle
- 45 731-07522 Handle Grip
- 46 749-04688 Lower Handle
- 47 731-07523 Cord Retainer
- 48 720-04145 Quick Release Handle
- 49 736-04488 Washer
- 50 720-04146 Quick Release Knob
- 51 714-04086 Quick Release Pin
- 52 715-04107 Pin
- 53 712-04239 Nut
- 54 712-04250 Nylock Nut
- 55 720-04147 Wing Knob
- 56 710-05082 Screw, M8
- 57 736-04489 Washer
- 58 731-07524 Cord Clip
- 59 714-04088 Shoulder Bolt
- 60 731-07513 Cap
- 61 625-04125 Switch Box Assembly
- 62 725-05115 AC Power Cord
- 63 725-05116 Motor Cord
- 64 747-05304 Grassbag Frame
- 65 764-04096 Grass bag
- 66 712-04251 Lock Nut
- 67 736-04497 Washer
- 68 710-05119 Screw, M4.2 x 16
- 69 710-05117 Screw, M6 x 12
- 70 712-04250 Lock Nut, M6
- 71 710-05120 Screw, M4 x 12
- 72 712-04251 Lock Nut, M4
- 73 716-04163 Lock Ring
- 74 725-05121 Rectifier Heat Sink
- 75 725-05127 Rectifier
- 76 710-05123 Screw, M4.8 x 16
- 77 710-05124 Screw, M4.2 x 25
- 78 710-05118 Screw, M5 x 12
- 79 710-05119 Screw, M4.2 x 16
- 80 736-04505 Spring Washer
